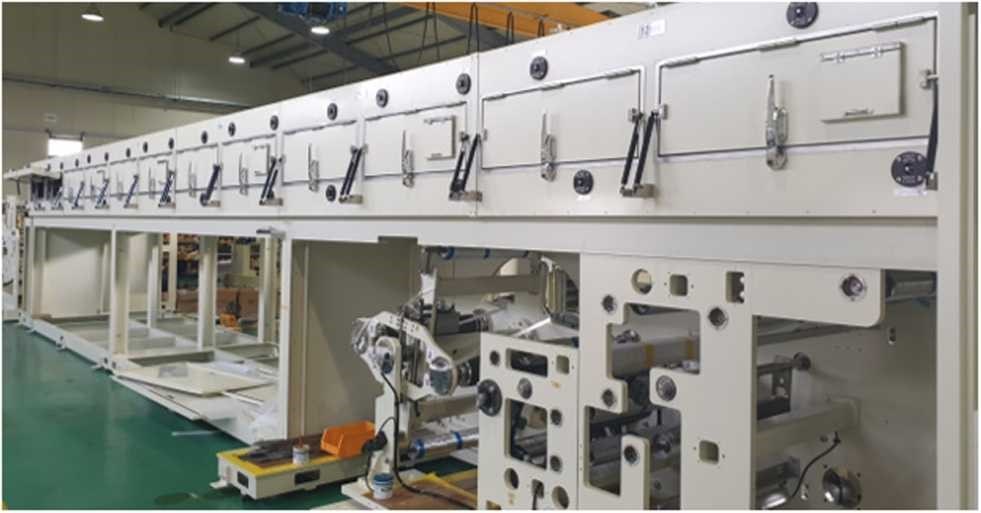

PNT’s Printing Machine is combined coater and gravure unit, which is rotates the gravure roll screen on the formed green sheet and heats the internal electrodes at high speed and after continuous printing and hot air drying.
|
|
General specification |
|
Web Material |
Base Film : PET, Silicon coated, Ceramic coated |
|
Web Thickness |
Base Film : 20pm ~ 38pm (Normal. 30pm) |
|
Web Width |
370mm, 440mm |
|
Roll Width |
600mm |
|
Coating Thickness (Wet) |
0.7 ~ 2 ㎛ |
|
Mechanical Speed |
Max.100m/min (Normal : 60m/min) |
|
Unwind Diameter |
570mm |
|
Rewind Diameter |
600mm |
|
Coating System |
Gravure Printing System |
|
Winding System |
2 Shaft Turret Type (Shaft Type) |
