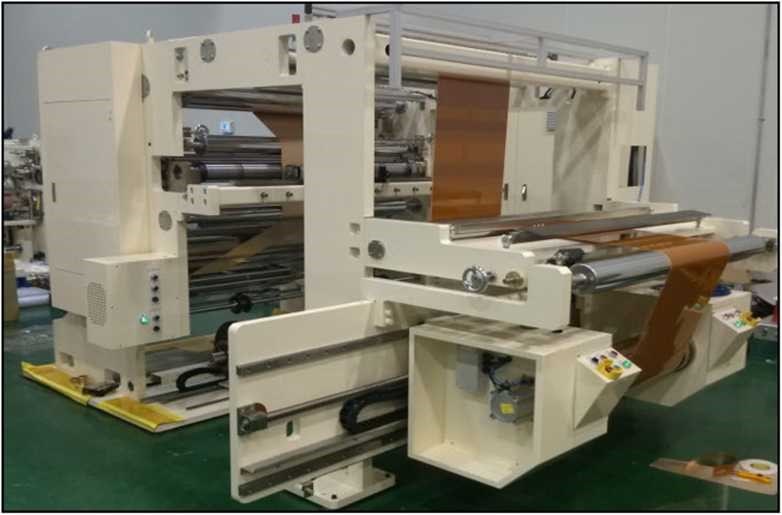

PNT’s FCCL Slitter a facility that slits and winds the film at appropriate width, for the electrode-coated CU foil or rolled CU foil.
|
|
General Specification |
|
Web Materials |
PET, PI, Pl+Cu |
|
Web Thickness |
PI+Cu(40 ~ 200M 이(12.5 ~ 300pm), PET(12.5 ~ 250pm) |
|
Web Width |
Max. 1,350mm ~ Min. 500mm |
|
Roll Width |
1,400mm |
|
이itting Width |
250mm, 500mm |
|
이itting Zone |
Max. 4 pcs ~ Min. 2 pcs |
|
Machine Speed |
Max. 100m/min |
